MATERIAL: High conductivity bronze. Nut and lock washer are stainless steel.
FINISH:
Optional tin plating. Add suffix “TP” to catalog number.
APPLICATION: For connecting
ground wire to standard EEI-NEMA distribution transformers with 1/2″-13 tapped hole. The eyebolt of the TGL-208 rotates to accommodate either vertical or horizontal ground wire connection. The TGL-208 also features
a hex shoulder for wrench tightening while the TGL-110 is tightened by placing a wrench on the body.

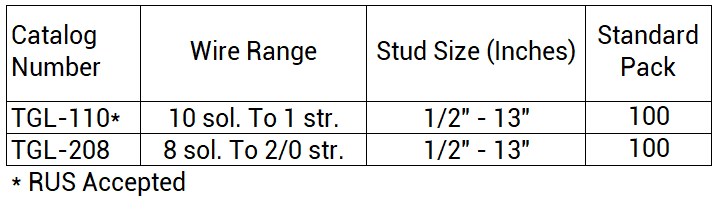

TGL-110
TGL-208
